Reka bentuk reben serat bersepadu tinggi
Elemen Pengukuhan Aramid memberikan kekuatan tegangan kabel yang sangat baik
Bahan luar adalah tahan karat, kalis air, tahan UV, retardan api dan mesra alam.
Pengagihan kabel dalaman
Sambungan antara instrumen, peralatan komunikasi
Patchcord dan pigtail
Mematuhi standard YD/T 1258.5, ICEA-596, GR-409, IEC 60794-2-30, dan dll.

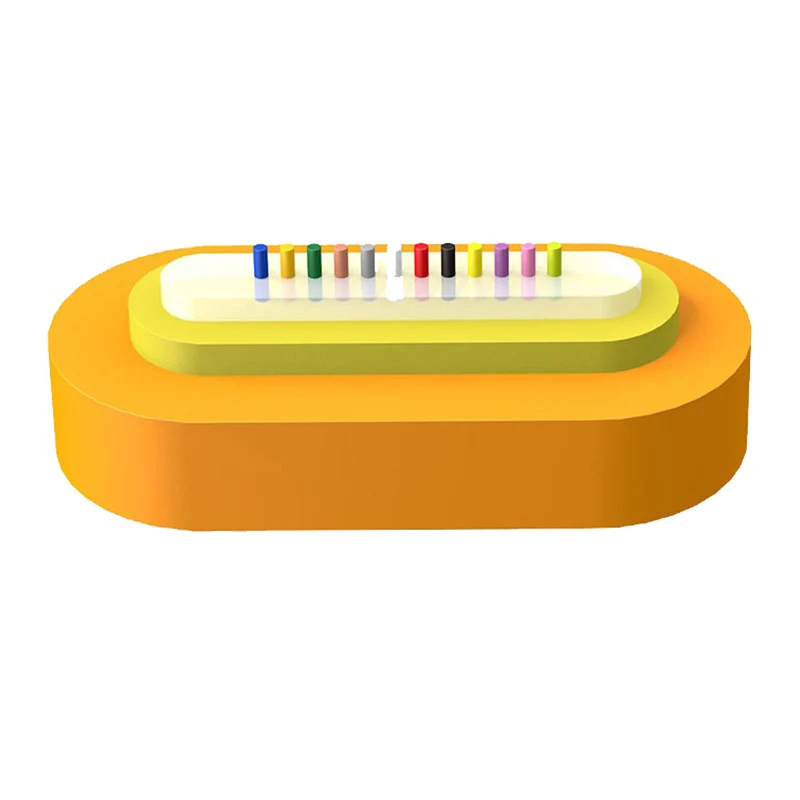

1. Serat
2. Riben serat
3. Aramid benang
4. Jaket
|
Model kabel |
Kiraan serat |
Berat Kabel (Ref) (kg/km) |
Kekuatan tegangan Jangka panjang/pendek |
Rintangan menghancurkan Jangka panjang/pendek (N/100mm) |
Jejari lentur Dinamik/statik (mm) |
||
|
4 |
(3.7 ± 0.3)*(2.3 ± 0.3) |
4 reben serat |
4.7 |
6.6 |
80/150 |
300/1000 |
25d/12.5d |
|
6 |
(4.2 ± 0.4)*(2.5 ± 0.2) |
6 reben serat |
5.1 |
7.3 |
|||
|
12 |
(4.8 ± 034)*(2.3 ± 0.3) |
12 reben serat |
5.9 |
8.0 |
|
Jenis serat |
Pelemahan |
OFL |
Jalur lebar mod yang berkesan |
Panjang pautan Ethernet 10 gbit/s |
Radius Bend Minimum |
|||
|
Keadaan |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
|
Nilai tipikal |
Nilai maksimum |
Nilai tipikal |
Nilai maksimum |
|||||
|
Unit |
db/km |
db/km |
db/km |
db/km |
MHZ.KM |
MHZ.KM |
m |
mm |
|
G652D |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
16 |
|
G657A1 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657A2 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
50/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
--- |
--- |
30 |
|
62.5/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
--- |
--- |
30 |
|
Om3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
|
Om4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
Pengangkutan/ penyimpanan/ suhu operasi: -20 ℃ -+60 ℃, suhu pemasangan: -5 ℃ -+50 ℃
